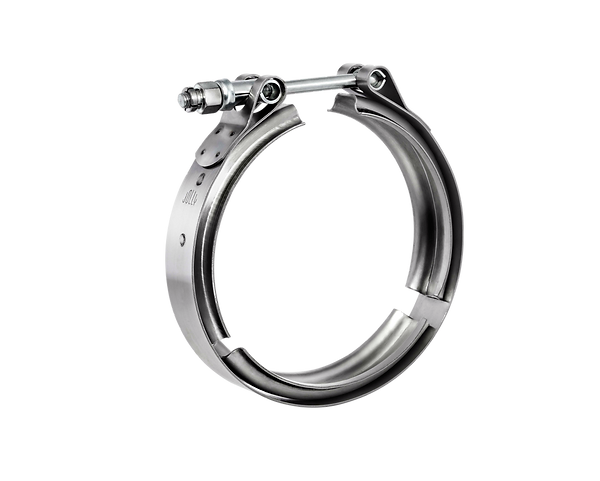

V-Band Coupling Clamp-TV

V-Band coupling clamp is a high strength customized V-shape profile clamp designed & manufactured by Jolly clamps for the leakproof clamping requirement of flanged connections. With the availability of a wide variety of frequently used sizes of V-band Clamp for OEM’s as well as Aftermarket, Jolly V-band clamp is most used in Exhaust & related applications as well as in non-auto industrial segments.

Product Features: V-Band Coupling Clamp-TV

  • Jolly V-Band Coupling Clamp is designed as per the customized requirement to connect Heavy Duty Metal flanges.

  • Jolly V-Band Clamp uses principle of wedging action to clamp flanges with help of V-Petal & suitable to sustain high burst pressure of Exhaust with the help of high Axial clamp force. Jolly V-Band clamp is available in two, three or Four V-Petal configurations, this V-Petals are welded on a band with robust welded construction to ensure high strength.

  • T-Bolt, Trunnion & Nut mechanism is used to fix & tighten the clamp on assembly whereas self-locking nut configuration prevents loosening of clamp due to heavy vibrations.

  • Jolly V-Band clamp is available with several standard sizes. ​

Available Material option: V-Band Coupling Clamp-TV

  • Jolly V-Band series products are made with a material grade of AISI or equivalent global standards to provide high quality & consistency in performance.

  • Jolly V-band clamps are available in SS300 grade series for high-value high-performance applications.

  • Jolly V-band clamps are also available in SS300 grade Series with a combination of SS200 grade steel or plated carbon steel parts as per customer requirement. Zinc plating is done for all carbon steel parts as per Industry & Global Export Standards.​

Application: V-Band Coupling Clamp-TV

Jolly V-Band Clamps serve in a wide variety of industries while meeting the required goal to connect heavy-duty metal flanges in high value & high-performance applications. Our products commonly used industries and applications such as:

  • Heavy Duty Automotive

  • Filter

  • Marine

  • Genset

  • Heavy Duty Trucks & Earth Moving Equipments

  • Industrial Applications

  • Pumps

  • Engines

  • Exhaust systems

  • Emissions

  • Muffler assemblies

  • Food and chemical processing equipment

  • Turbochargers
