One-way serrated hose clamp with spring insert for constant tension

One Way Serrated Spring Insert Clamp (SFS)

Jolly One Way Serrated Spring Insert Worm Drive clamp is designed to suit Medium duty applications where thermal fluctuation is a key concern. Spring action of Bridge & Spring construction accommodate the thermal fluctuations & prevents loosening or loss of clamp load due to increase/ decrease in joint diameter

Specification Sheet Enquire Now

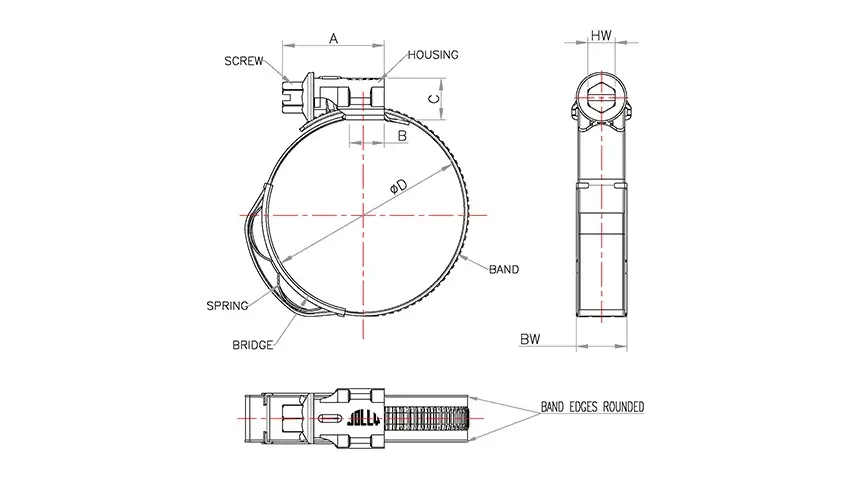

One-way serrated spring insert clamp, model SFS



Jolly Clamps

What Makes Jolly Clamps Different?

Quality assurance icon for Jolly Clamps manufacturing

Certified Quality

Holds IATF 16949, ISO 45001, and ISO 14001 certifications, ensuring high standards.

RoHS compliant badge for Jolly Clamps products

RoHS

Products meet RoHS standards, demonstrating commitment to environmental responsibility.

Illustration of Jolly Clamps' complete clamping solutions

100% Clamping Solutions

Acts as a "one-stop" provider for diverse clamping needs.

Illustration of Jolly Clamps' years of manufacturing experience

Extensive Experience

Boasts over 5 decades of manufacturing expertise.

Illustration of Jolly Clamps' domestic and global markets

Strong Market Presence

Supplies JOLLY brand clamps to over 80% of OEM and Aftermarket in India.

Illustration of Jolly Clamps' wide market reach

Global Reach

Exports to North and South America, Europe, and Russia.

Illustration of Jolly Clamps' engineering expertise in clamping

Customization Expertise

Specializes in producing customized clamps.

Delivery truck icon for Jolly Clamps' timely delivery

Efficient Delivery

Emphasizes the importance of lowest lead time.

Frequently Asked Questions for

One Way Serrated Spring Insert Clamp

The One Way Serrated Spring Insert Clamp (SFS) is a medium-duty worm drive clamp designed to handle thermal fluctuations in applications. It features a spring insert mechanism that automatically re-tensions the clamp to maintain a secure seal as hose diameters expand or contract due to temperature changes.

  • Designed according to German DIN 3017-01 standards for medium-duty applications.
  • Worm gear mechanism for easy tightening or loosening.
  • Spring and bridge construction for automatic re-tensioning to prevent seepage.
  • Smooth inner surface to prevent hose damage, making it suitable for soft nitrile hoses.
  • Available in a wide range of diameters and customizable as per customer requirements.

The One Way Serrated Spring Insert Clamp is made with high-quality materials, including:

  • SS430 grade or plated carbon steel with Hexavalent or Trivalent Zinc plating.
  • The spring and bridge components are typically made from SS301 material for added durability and flexibility.

The clamp is widely used in industries where temperature fluctuations and secure connections are critical, such as:

  • Automotive applications
  • Engine systems
  • Earthmoving equipment
  • Agricultural machinery
  • Genset (generator set) systems

The spring insert mechanism accommodates changes in joint diameter caused by thermal expansion or contraction. It ensures consistent clamp load, prevents loosening, and reduces the risk of leaks or seepage.

The smooth inner surface eliminates the risk of hose biting or damage, making the clamp ideal for soft materials like nitrile hoses, which are commonly used in automotive and industrial applications.

Yes, the clamp is available in a variety of diameters and can be customized to meet specific customer requirements, ensuring flexibility for diverse applications and industries.
